| 100 Series
Standard Pressure Gauges |
NOSHOK 100 Series Standard Gauges are a high quality
dry gauge designed to provided reliable service
on applications not corrosive to brass. |
| 200 Series
Low Pressure Diaphragm Gauges
|
NOSHOK diaphragm gauges are designed for extremely
low pressure or vacuum measurement |
|
300 Series
Brass Case Liquid Filled Pressure Gauges
|
NOSHOK 300 Series liquid filled gauges are used
on demanding applications throughout the world that
are not corrosive to brass. |
| 400 Series
Stainless Steel Dry Pressure Gauges
|
NOSHOK 400 Series gauges are dry with all stainless
steel construction and are the ultimate in corrosion
resistant heavy duty vacuum and pressure gauges |
| 500 Series
Stainless Steel Liquid Pressure Gauges
|
NOSHOK 500 Series gauges are liquid filled with
all stainless steel construction and are the ultimate
in corrosion resistant heavy duty vacuum and pressure
gauges.
|
|
600 Series
Process Pressure Gauges
|
NOSHOK 600 Series (Brass) Series Process Gauges
are specifically designed for demanding application
in the chemical and petroleum processing industries,
as well as many industrial applications |
700 Series
Process Pressure Gauges |
NOSHOK 700 Series (304SS) Series Process Gauges
are specifically designed for demanding application
in the chemical and petroleum processing industries,
as well as many industrial applications.
|
|
800 Series
Precision Test Gauges
|
NOSHOK Test Gauges are use in laboratories on
calibration stands, gauge repair facilities and
on sophisticated aerospace equipment used in launching
space vehicles |
900 Series
Liquid Filled Pressure Gauges |
NOSHOK 900 Series Liquid Gauges are used on industrial
applications throughout the world where pulsation,
vibration and shock is present and the pressure
media is not corrosive to brass. |
100 Series
Current Output Pressure Transmitter
|
4 mA to 20 mA Output (2-wire)
Pressure ranges covering vacuum through 15,000 psi
±0.5 % Full Scale (BFSL) accuracy standard, ±0.25
% Full Scale (BFSL) Optional |
|
200 Series
Voltage Output Pressure Transducers
|
0 Vdc to 5 Vdc output (3-Wire)
0 Vdc to 10 Vdc output (3-Wire)
1 Vdc to 5 Vdc output (3-Wire)
1 Vdc to 6 Vdc output (3-Wire)
1 Vdc to 11 Vdc output (3-Wire)
Pressure ranges covering vacuum through 15,000 psi
±0.5 % Full Scale (BFSL) accuracy standard, ±0.25
% Full Scale (BFSL) optional |
600 Series
Heavy Duty OEM Pressure Transducers |
4 mA to 20 mA output (2-Wire)
1 Vdc to 5 Vdc output (3-Wire)
1 Vdc to 6 Vdc output (3-wire)
0 Vdc to 10 Vdc output (3-Wire)
Pressure ranges covering vacuum through 15,000 psig
±0.5 % Full Scale (BFSL) accuracy |
1000 Series
Digital Pressure Gauge |
7-segment, Liquid Crystal Display, .5” high
Standard gauge ranges from vacuum to 5000 psig
±0.5 % Full Scale accuracy standard |
800 Series
Platinum Resistance Temperature Transmitter |
4 mA to 20 mA output (2-wire)
0 Vdc to 10 Vdc output (3-Wire)
Temperature ranges covering -40 oC to 1000 oC
Class B (±0.5 % Full Scale) |
Type 10/10H Clamped Style Replaceable Diaphragm
Standard & Elevated Pressure Diaphragm Seal
|
NOSHOK Type 10 and 10H, Standard and Elevated
Pressure Diaphragm Seals are designed for applications
that require isolating the measuring instrument
from the corrosive, viscous or contaminated process
media with a pressure rating up to 20,000 psi. The
Type 10 and 10H utilize a field replaceable diaphragm
clamped between the flanged housings with an o-ring
seal to create a leak free union. Upper housing
material is available in carbon steel and 316SS
material. The lower housing is offered in a variety
of metallic materials with threaded process connections
from 1/4 inch NPT to 1 1/2 inch NPT sizes. A flushing
port connection is an available option that allows
the wetted areas of the seal to be cleaned or the
process to be vented without removing the unit from
the line. |
| Type 25/25H
All Welded Miniature
Standard & Elevated Pressure Diaphragm Seal
|
NOSHOK Type 25 and 25H, Standard and Elevated
Pressure All Welded Diaphragm Seals are designed
to isolate the measuring instrument from the corrosive
or viscous process media that may clog the instruments
pressure port. The all welded diaphragm and housing
materials are offered in various metallic forms
to suit most application needs. The standard pressure
seal is rated to 2500 psi maximum and elevated pressure
models are rated to 5000 psi. Both units have a
limited displacement capability of 0.02 cubic inches
with a 1.4 inch diameter diaphragm. Due to the displacement
constraint this diaphragm seal is generally restricted
to gauges with dial sizes of 2 1/2 inches &
smaller and pressure ranges no less than 100 psig.
A flushing port is an available option, which allows
the user to clean the wetted areas and vent the
process line without removing the seal. |
| Type 29
All Welded Miniature High Displacement
High Volumetric Displacement Diaphragm Seal
|
The NOSHOK Type 29 High Displacement, All Welded
Diaphragm Seal is an off-line seal with a threaded
connection and all welded, gasketless construction.
They are designed with a larger diameter diaphragm
for higher displacement capability. They may be
used with pressure gauges up to 4 1/2 inches in
diameter with pressure ratings from -30″ Hg to 0
psig through -30″ Hg to 2500 psig. These seals are
offered in a variety of materials and process connections
to suit most application needs. A flushing port
is offered as an option to clean the wetted area
and prevent process media clogging or vent the process
without removing the seal from the line. |
2000 Series
2 Valve Hard Seat & Soft Seat Manifold |
The NOSHOK 2000 Series Hard Seat and Soft Seat
2 Valve Manifolds are designed for use with differential
pressure transmitters in liquid level applications.
The NOSHOK 2000 Series 2 Valve Manifolds are also
available in either a single flange or double flange
connection for direct installation. |

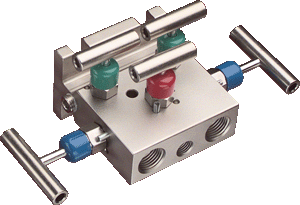

5000 Series
5 Valve Hard Seat & Soft Seat Manifold |
The NOSHOK 5000 Series Hard Seat and Soft Seat
5 Valve Manifolds are designed for use with differential
pressure transmitters incorporating two isolation
valves, two equalizing valves and a vent valve in
natural gas applications. The NOSHOK 5000 Series
5 Valve Manifolds are also available in either a
block, single flange or double flange connection
for remote or direct installation |
